CNC Turning
Sleeves, rings, bushings, shafts and other cylindrical parts.
Capabilities
Machining and partner-process capabilities
RF Machining separates in-house machining, in-house feasibility review for drawing-defined Stellite 6 / ST6 welded hardfacing, and processes arranged through long-term partners so buyers can confirm capability boundaries during RFQ communication.
Drawing-based custom machining
Typical machining range
Machining range confirmed from drawings
For sleeves, collars, rings, bushings, glands and other pump or valve components, RF Machining confirms size, material, tolerance, surface treatment and batch quantity from the drawing or sample before quotation.
- Turned sleeves, collars, bushings, wear rings and gland-style ring components
- Milled, drilled, tapped and slotted features when defined by the drawing
- Drawing-defined Stellite 6 / ST6 welded hardfacing is reviewed for in-house feasibility.
- Small and medium batches for OEM, MRO and aftermarket spare-part supply
- Larger or tighter-tolerance parts are confirmed case by case before quotation
In-house
In-house machining and ST6 welded-hardfacing feasibility review
These machining steps are handled as part of RF Machining's workshop production and process planning for drawing-based parts. Drawing-defined Stellite 6 / ST6 welded hardfacing is reviewed for in-house feasibility. Component geometry and size, base material, overlay area, consumable grade, deposition route, machining allowance, finished overlay thickness, hardness and inspection method are confirmed for each RFQ and order.
CNC Milling
Milled faces, features, holes and non-standard component geometry.
Drilling & Tapping
Drawing-defined holes, threads and assembly features.

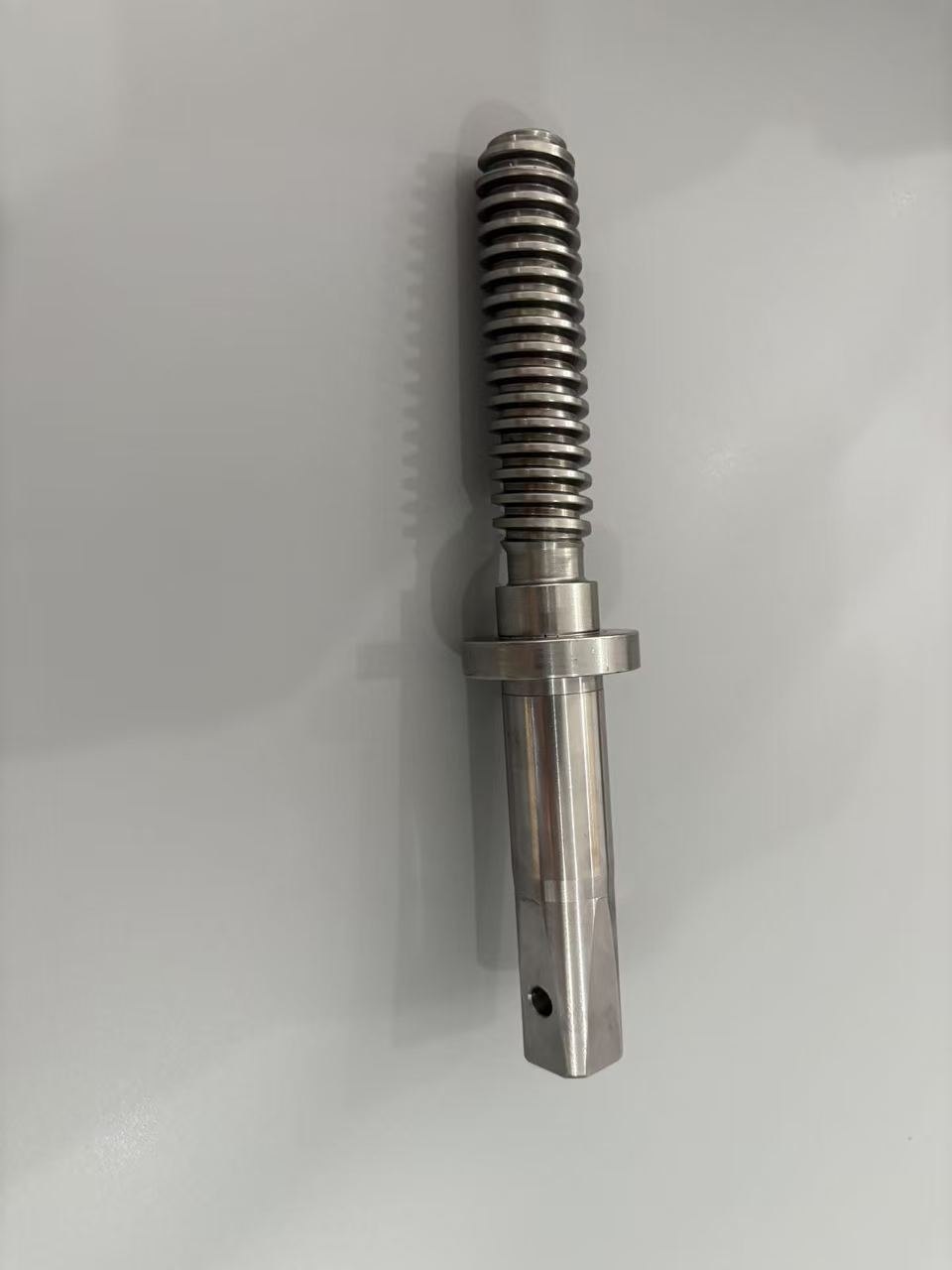

Thread Machining
Internal and external thread requirements according to drawings.
ID, OD, Face & Groove Machining
Controlled fits, end faces, steps and grooves.
CNC Slotting
Internal slotting and related drawing-defined features.
Partner processes
Processes arranged through long-term partners
Grinding, heat treatment, QPQ, hard chrome plating and thermal spray coating requirements can be arranged through long-term process partners when specified by the drawing or RFQ.
Partner-process suppliers are managed through long-term working relationships and order-specific requirements. Supplier names, customer names, logos, drawings and confidential order details are not published.
Grinding
Can be arranged through long-term process partners.
Heat Treatment
Can be arranged according to drawing and material requirements.
QPQ
Nitriding-related surface requirements can be arranged through partners.
Hard Chrome Plating
Can be arranged for drawing-defined surface requirements.
Other Overlay / Wear-Resistant Surface Requirements
Specified Stellite grades or other cobalt-alloy hardfacing requirements are reviewed according to the drawing and agreed manufacturing route.

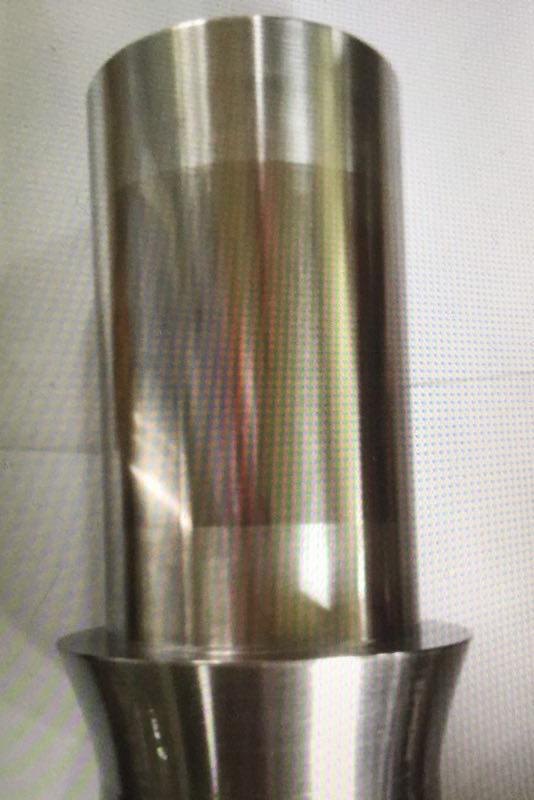

Nickel & Thermal Spray Coating
Can be arranged for specified surface or corrosion requirements.
Documents
Inspection and document support
Document level is confirmed according to drawing, RFQ and order requirements. RF Machining keeps this practical and order-specific.
We check dimensions with calipers, micrometers, bore gauges and roughness meters according to part geometry and tolerance requirements. Material certificates and inspection reports can be provided upon request.
- Material certificates upon request
- First article reports upon request
- Key-dimension inspection records
- Hardness, roughness and runout checks when required
- Surface-treatment records when applicable
- Packing photos upon request
Workshop evidence
Workshop & Machining Videos
Watch three short workshop videos showing CNC turning, shaft-sleeve slotting and milling of a large pump component.
CNC turning in process for pump ring machining
Internal slotting operation for custom shaft sleeves
CNC milling in process for a large pump component
Request for quotation
Send drawings or sample information
Send your drawing or sample information together with material, quantity, surface-treatment and inspection requirements. Our team will review the request and reply as soon as possible.
RFQ details to include
- Drawing or sample information
- Material requirements
- Order quantity
- Surface-treatment requirements
- Inspection requirements
- Target delivery timing
