01
Drawing Review
Drawings, samples and RFQ requirements are reviewed before process planning.
Quality control
Quality control for custom pump wear parts
Inspection level, inspection items and report format are defined according to customer drawings, RFQ details and order requirements.
Gaoyou Ruifeng Machinery Factory
ISO 9001:2015
Certification and records
Practical quality documentation
Gaoyou Ruifeng Machinery Factory holds ISO 9001:2015 quality management certification. Public document examples are shown with customer and project information removed.
Inspection items and report level are defined according to customer drawings and order requirements.
Quality workflow
Order-specific inspection flow
The workflow starts with drawing review and continues through process planning, first article checks, in-process inspection, partner-process review, final inspection, packing inspection and record archive.
02
Process Planning
Machining and partner-process steps are defined for the order.
03
First Article Inspection
Initial parts can be checked before continued production when required.
04
In-Process Inspection

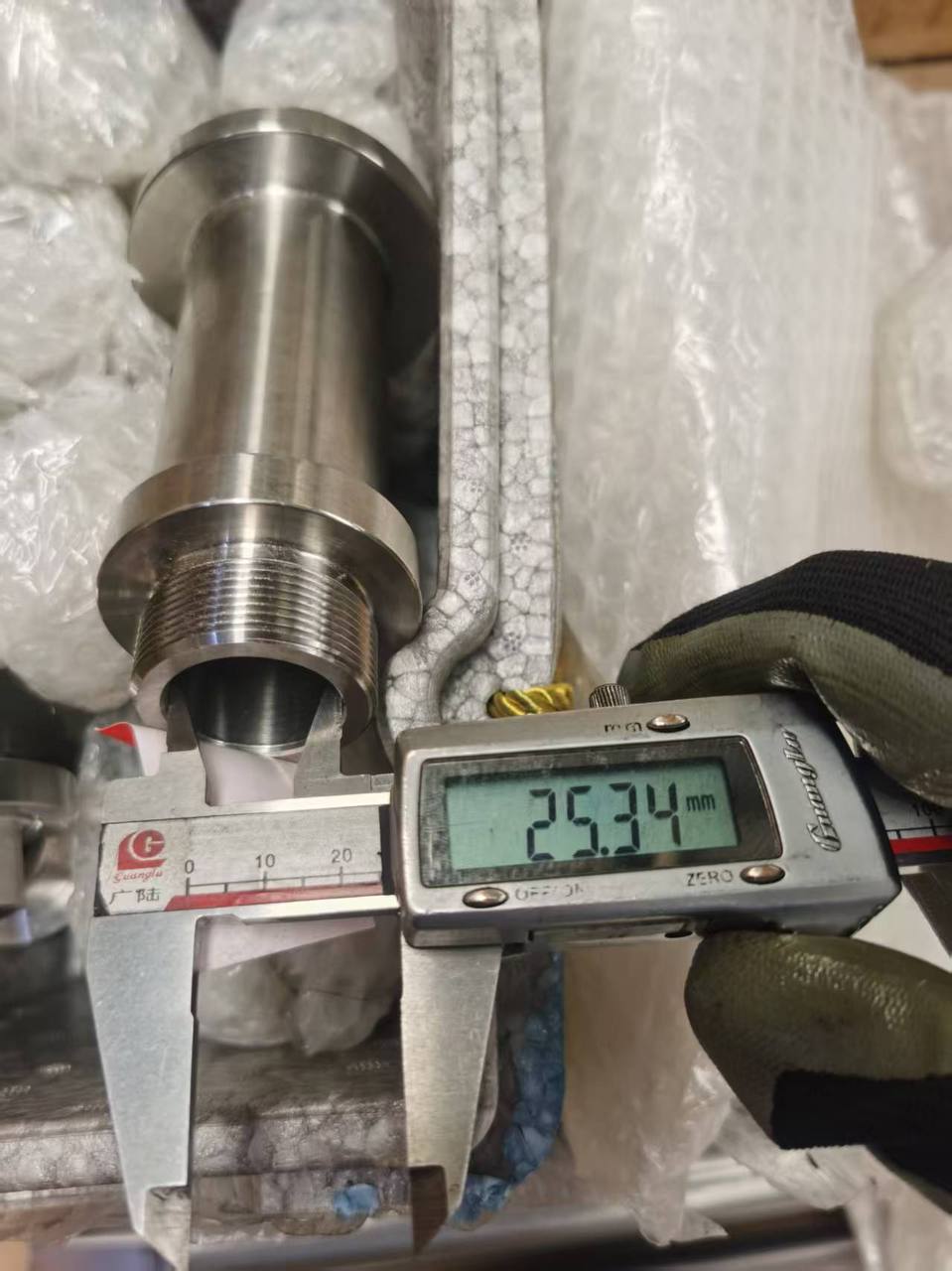

Key dimensions are checked during machining according to order needs.
05
Partner-Process Check
Applicable outsourced treatment or coating requirements are reviewed.
06
Final Inspection
Finished parts are checked against drawing and RFQ requirements.
07
Packing Inspection
Quantity, identification and protection are reviewed before shipment.
08
Record Archive
Required reports and records are retained according to order needs.
Evidence
Public quality evidence
Customer and project information is removed while certification, material and inspection details remain visible for buyer review.
ISO 9001 certificate evidence
Material test report example

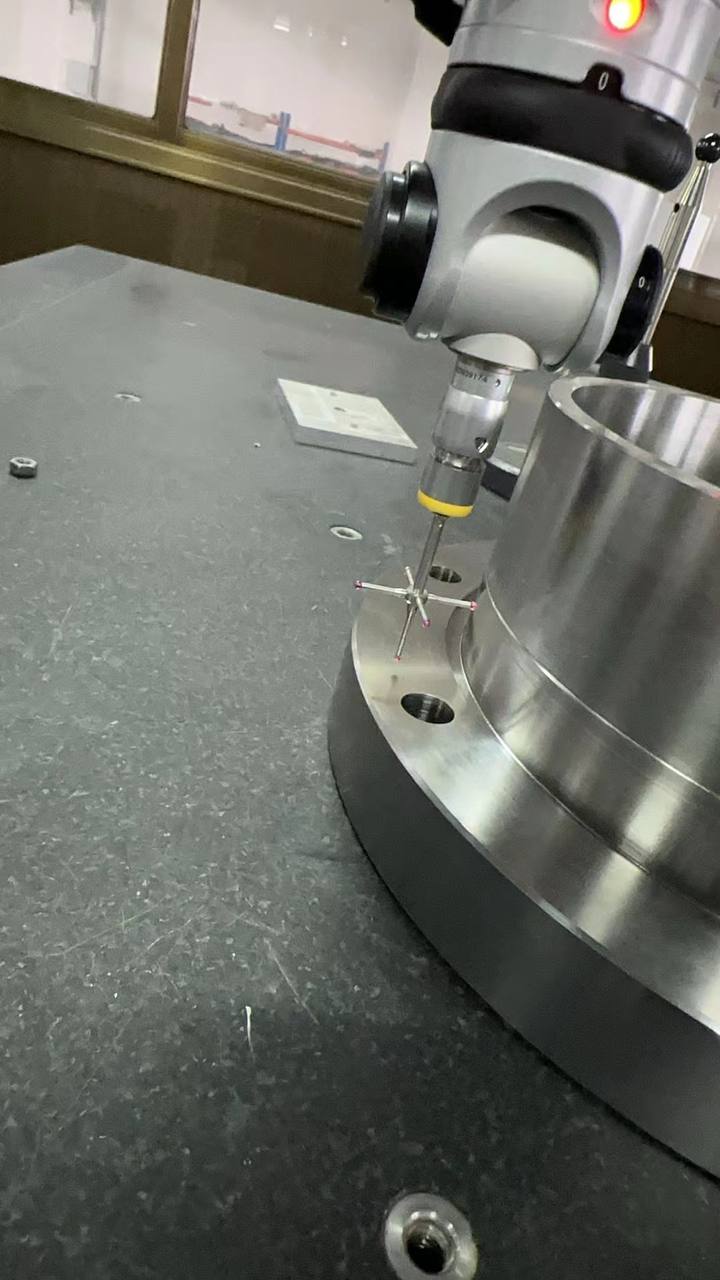

Dimensional inspection record example
Request for quotation
Send drawings or sample information
Send your drawing or sample information together with material, quantity, surface-treatment and inspection requirements. Our team will review the request and reply as soon as possible.
Request a QuoteRFQ details to include
- Drawing or sample information
- Material requirements
- Order quantity
- Surface-treatment requirements
- Inspection requirements
- Target delivery timing
