Pump Components
Shaft sleeves, wear rings, bushings, balance components and special-pump parts made or finished from customer drawings or samples.
- Shaft sleeves and collars
- Wear rings and bushings
- Balance and special-pump components
Real workshop · Drawing-based manufacturing
Drawing-Based Pump Components & Hardfaced Valve Trim
Machined pump sleeves, wear rings, bushings and balance components; hardfaced valve seats, seat rings, discs and plugs; and other drawing-based pump and valve components manufactured or finished according to customer drawings, material, overlay and inspection requirements.
Two core supply areas
Pump Components and Hardfaced Valve Trim
Two equal drawing-based supply areas, each supported by verified component and manufacturing evidence.
Hardfaced Valve Trim
Drawing-based valve seats, seat rings, discs and plugs with order-specific overlay, finish machining and inspection requirements.
- Valve seats and seat rings
- Valve discs and plugs
- ST6 or other drawing-specified hardfacing requirements
Pump components
Drawing-Based Pump Component Categories
Shaft sleeves, wear rings, bushings, balance components and special-pump parts reviewed from customer drawings or samples.

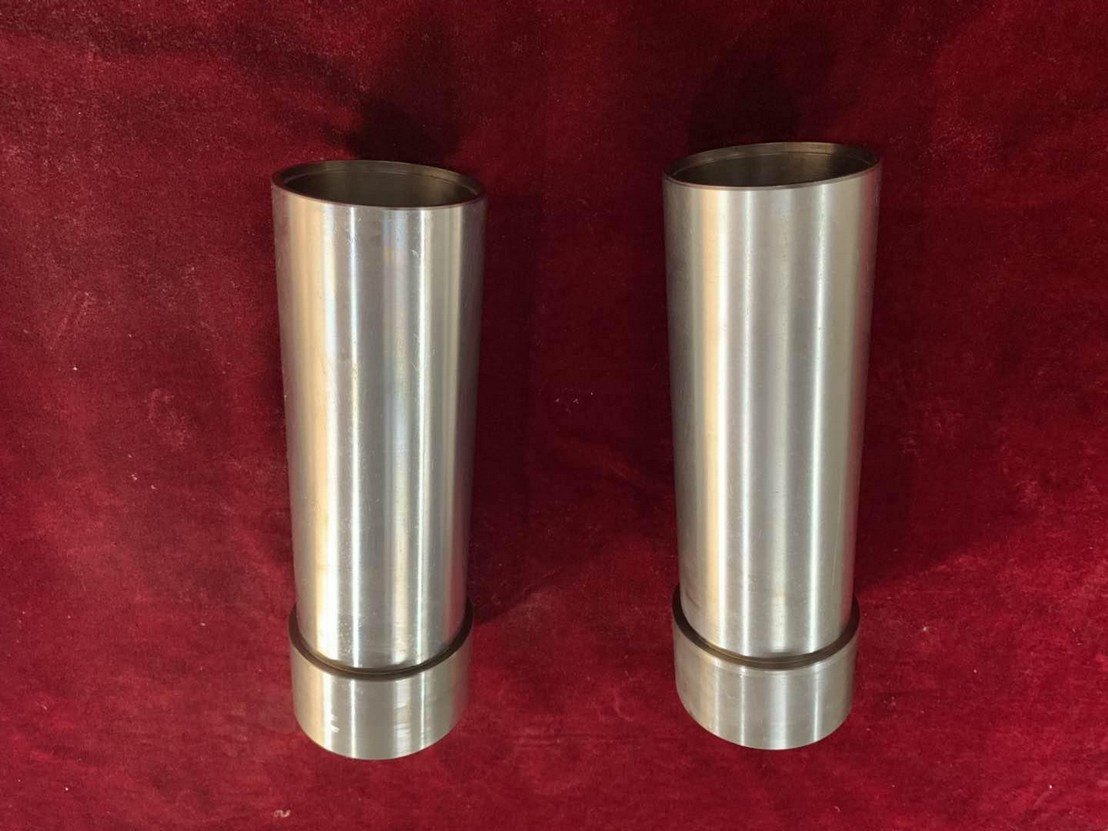

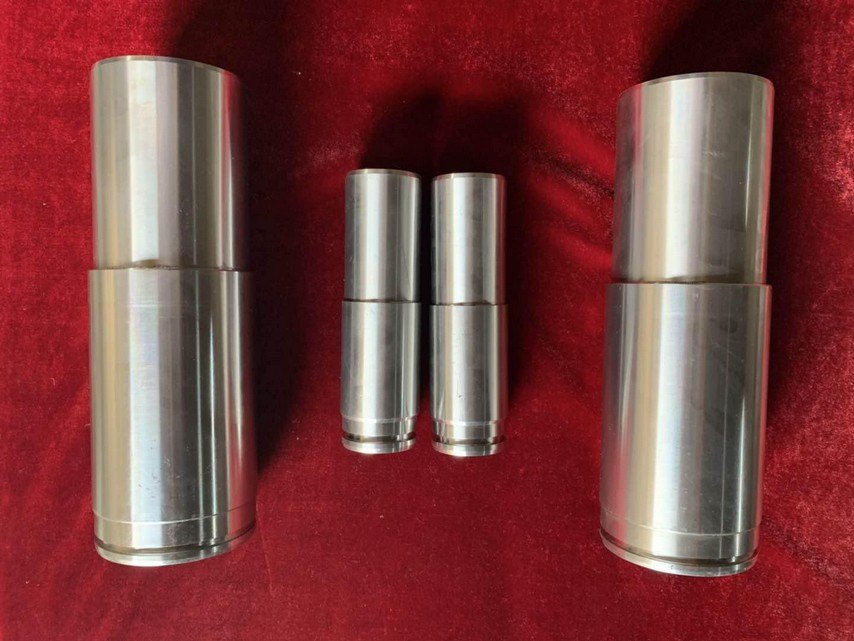

Custom Pump Shaft Sleeves & Collars
Custom pump shaft sleeves made to drawing for industrial pumps, including mechanical seal sleeves, packing sleeves, spacer sleeves, collars and bearing-related wear sleeves. RF Machining reviews fit, runout, surface finish and treatment requirements from customer drawings or samples.
- Shaft sleeves
- 316L / 2205 / 3Cr13
- Drawing-based

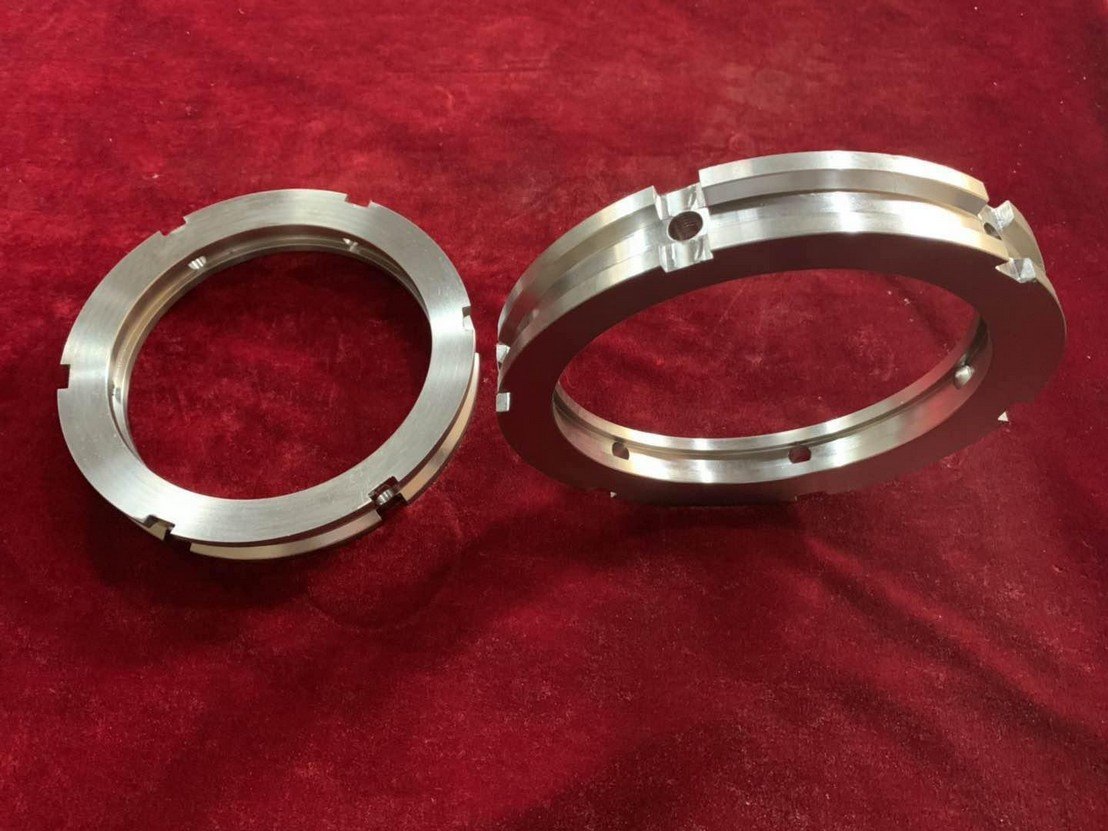

Pump Wear Rings / Casing Rings / Impeller Rings
Drawing-based pump wear rings for casing and impeller positions. In some pump drawings, seal ring is used as a naming variant for this hard part rather than for an O-ring, rubber seal, or mechanical-seal face.
- Casing / impeller rings
- Clearance control
- Stainless / bronze
Pump Bushings & Guide Bushings
Drawing-based pump bushings and guide bushings for bearing, guide or throat-bushing requirements. Throat bushing is used only when the customer drawing or pump-seal-chamber context defines that application.
- Pump bushings
- Bronze / stainless
- Drawing-based

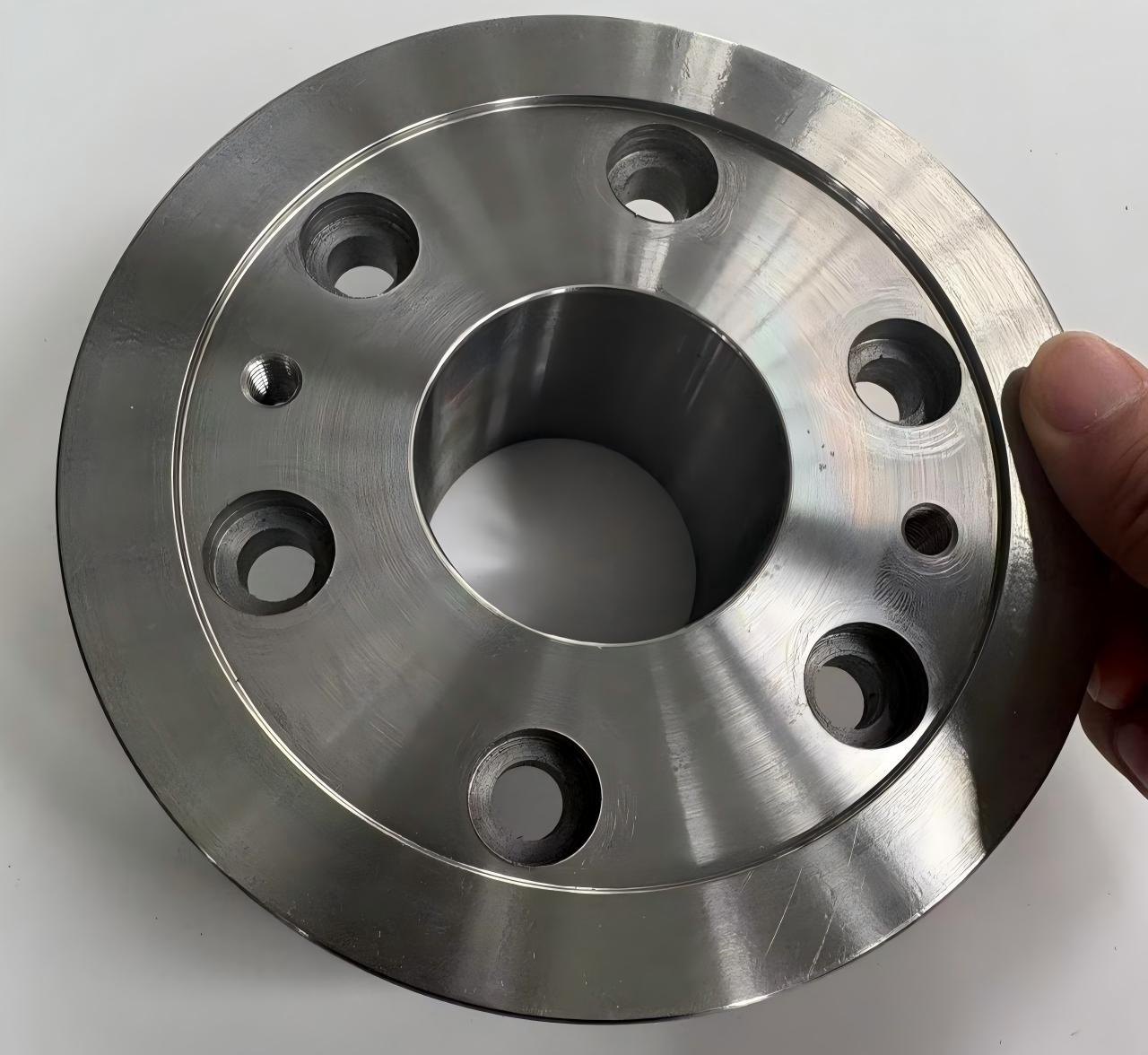

Balance Discs & Balance Rings
Drawing-based balance discs and balance rings for multistage pumps, including boiler feed pumps and other high-pressure pump applications that use axial-thrust balancing parts.
- Multistage pumps
- Axial thrust control
- 3Cr13 / 2205
Photos are added only when verified for this component scope.
Special Pump OEM Components
Drawing-based machined components for small and medium pump OEMs and special pump manufacturers, including canned motor, sealless, magnetic drive, chemical and LPG pump applications.
- Pump OEMs
- Special pump applications
- Drawing-based
Hardfaced valve trim
Hardfaced Valve Trim Components
Valve trim overview, seats and seat rings, and discs and plugs remain distinct component scopes; ST6 is handled as an order-specific hardfacing requirement.
Custom Hardfaced Valve Trim Components
RF Machining supplies drawing- or sample-based finished components, not complete valves. Responsibility for complete-valve design, the pressure-retaining boundary, assembly, pressure testing, certification and valve performance remains with the valve manufacturer or design authority. Manufacturing scope is reviewed for each trim geometry and specified working surface.
- Valve trim
- Hardfaced working surfaces
- Drawing-based
Custom Hardfaced Valve Seats & Seat Rings
RF Machining supplies drawing- or sample-based finished components, not complete valves. Responsibility for complete-valve design, the pressure-retaining boundary, assembly, pressure testing, certification and valve performance remains with the valve manufacturer or design authority. Seat and seat-ring terminology is applied according to the component geometry and the customer's valve drawing.
- Valve seats
- Seat rings
- Finished components
Custom Hardfaced Valve Discs & Plugs
RF Machining supplies drawing- or sample-based finished components, not complete valves. Responsibility for complete-valve design, the pressure-retaining boundary, assembly, pressure testing, certification and valve performance remains with the valve manufacturer or design authority. Disc and plug terminology is applied according to the closure-member geometry identified by the customer drawing.
- Valve discs
- Valve plugs
- Finished components
Machining and surface treatment
Machining, Hardfacing & Surface Treatment Support
CNC machining, drawing-defined hardfacing, partner surface treatments, final machining and inspection are managed according to the agreed manufacturing route.
- CNC turning, milling, drilling, tapping and slotting
- Drawing-defined hardfacing or welded-overlay requirements
- ST6 or other order-specified alloy requirements
- Hard chrome plating, nitriding / QPQ, heat treatment and thermal spray when specified
- Final machining after plating, coating or overlay
- Dimensional, hardness and order-specific document checks
Special pump applications
Special Pump Components Reviewed from Drawings
Start with the special-pump overview, then use the application pages when the component and operating context match.
Special Pump OEM Components
Drawing-based machined components for small and medium pump OEMs and special pump manufacturers, including canned motor, sealless, magnetic drive, chemical and LPG pump applications.
Custom Canned Motor Pump Components
Custom machined sleeves, washers, collars, bushings and bearing-related components for canned motor pump applications, including Ni60 sprayed and ground parts when specified by customer drawings. RF Machining supplies drawing-based parts, not complete canned motor pumps.
Custom Machined Components for Sealless and Chemical Pumps
Custom machined components for chemical pumps, magnetic drive pumps and sealless pump applications, including sleeves, bushings, collars, wear rings and other parts made from customer drawings.
Custom LPG Pump Sleeves and Collars
Custom machined sleeves, collars and wear-surface components for LPG pump applications, made according to customer drawings and technical requirements. RF Machining supplies drawing-based pump components, not complete LPG pumps.
Quality and workshop evidence
Verify the Workshop, Inspection and Production Evidence
Real workshop, machining, dimensional inspection and redacted record evidence supports buyer review without exposing customer drawings or order details.

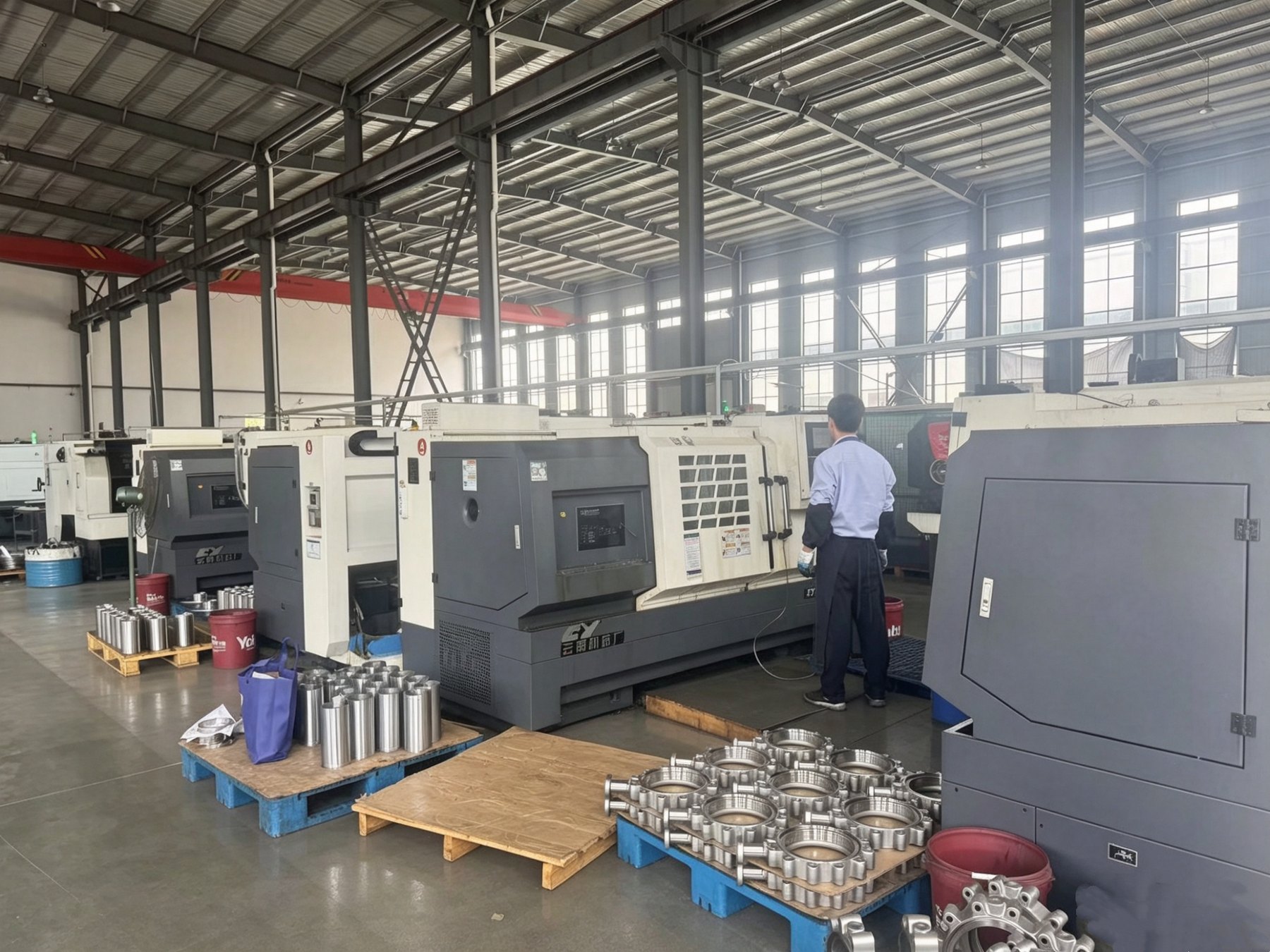

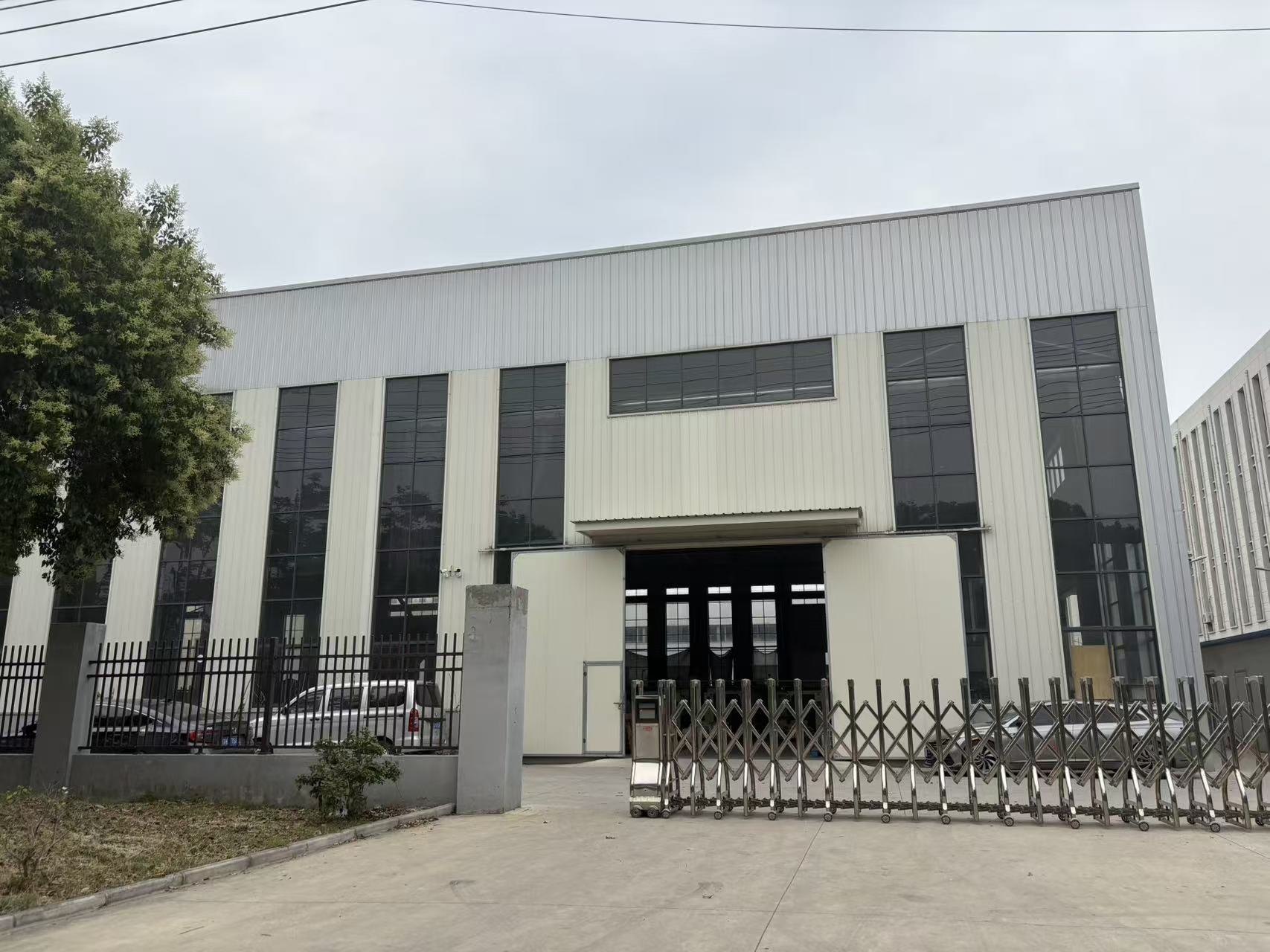

RF Machining workshop overview

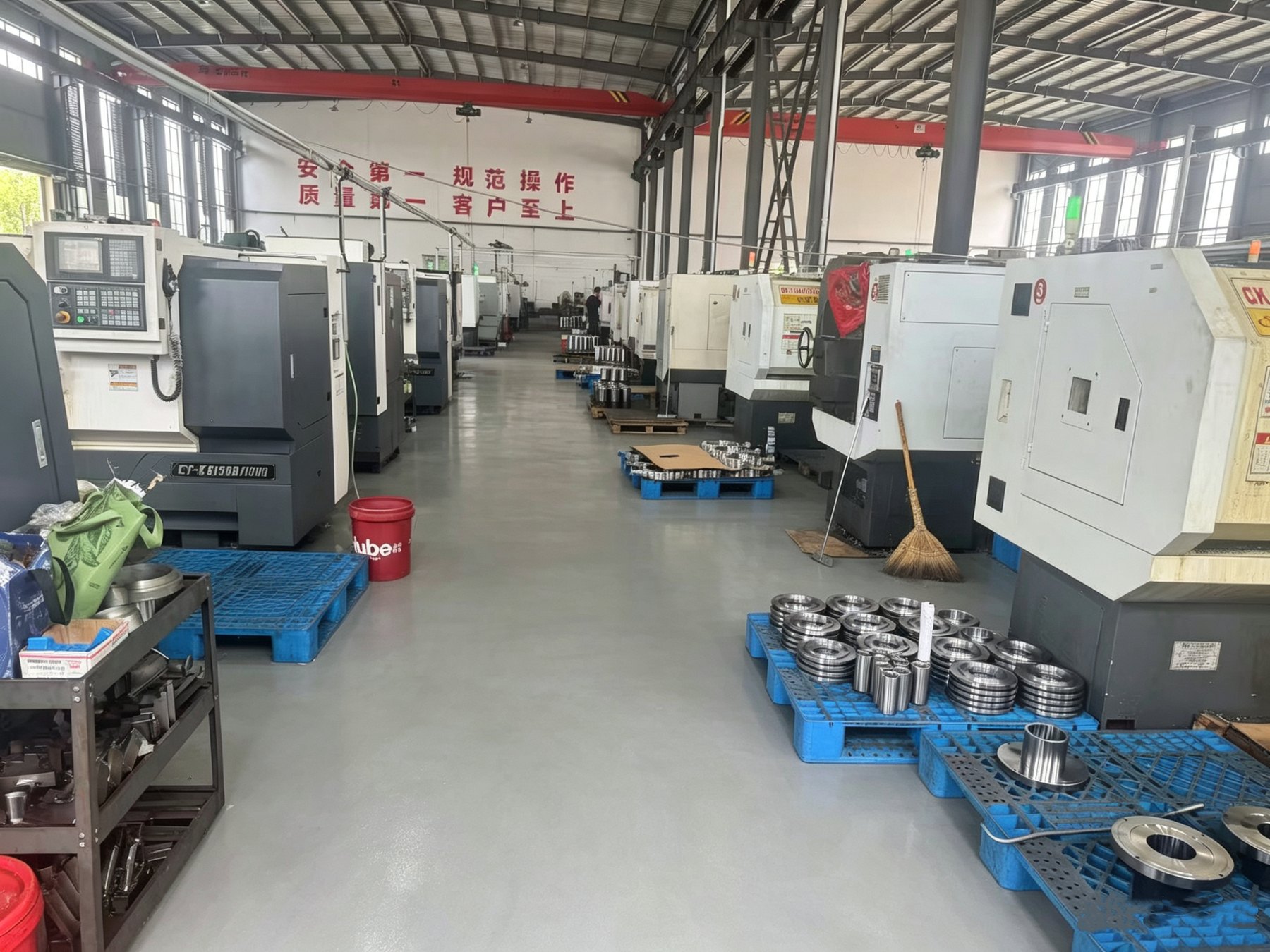

CNC lathe area for custom pump and valve components
Digital caliper dimensional inspection for custom machined pump and valve components
CMM dimensional inspection for drawing-based machined components
Workshop & Machining Videos
Watch three short workshop videos showing CNC turning, shaft-sleeve slotting and milling of a large pump component.
CNC turning in process for pump ring machining
CNC turning evidence for a drawing-based pump ring component.
Internal slotting operation for custom shaft sleeves
Internal slotting evidence for a drawing-based custom shaft sleeve.
CNC milling in process for a large pump component
CNC milling evidence for a large drawing-based pump component.

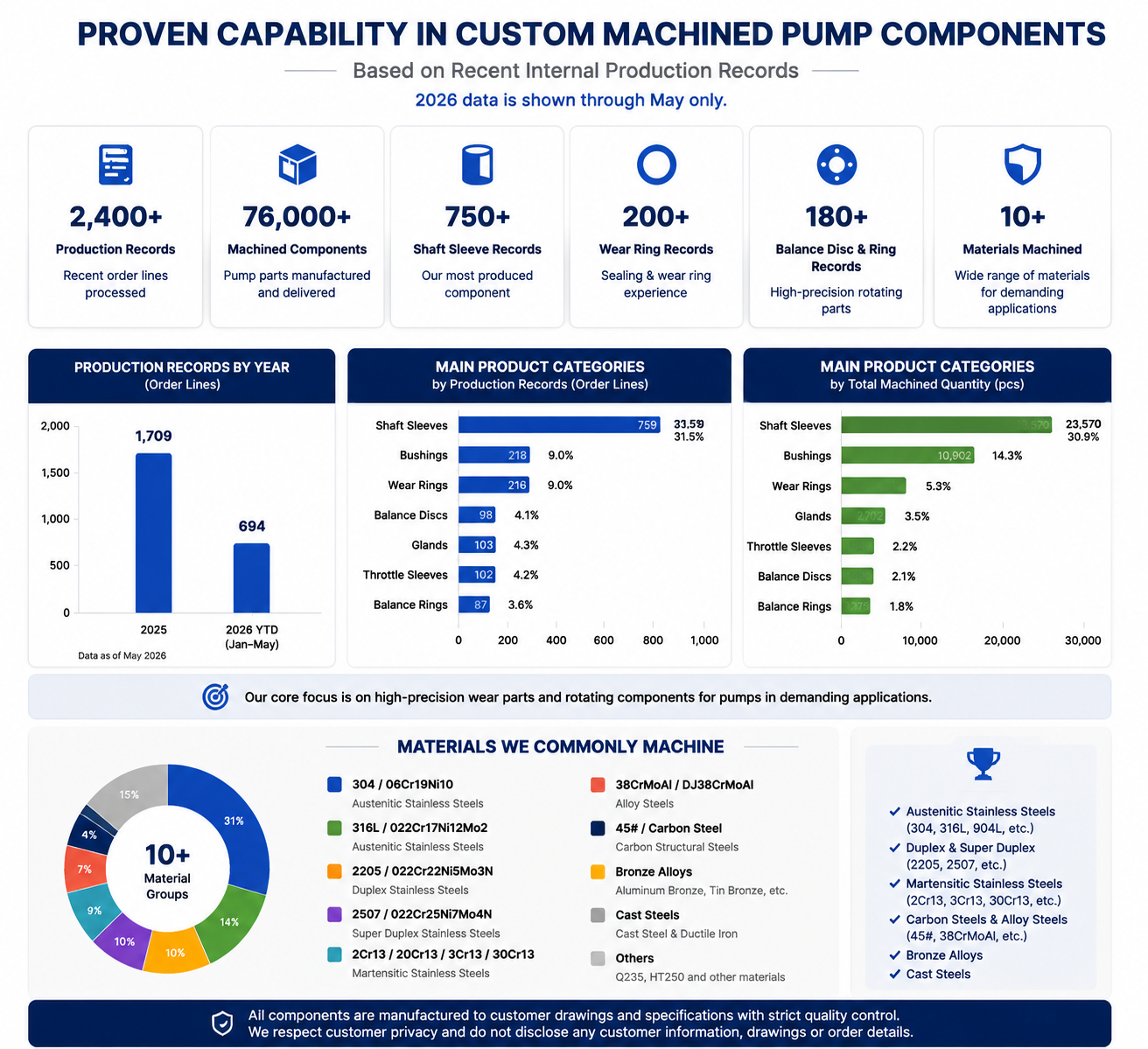

Production records
Proven capability in pump component production
This internal summary gives buyers a practical view of recent pump-component machining experience. Figures are based on internal production records and are shown without customer names, drawings or order details.
No customer names, drawings or order details are disclosed.

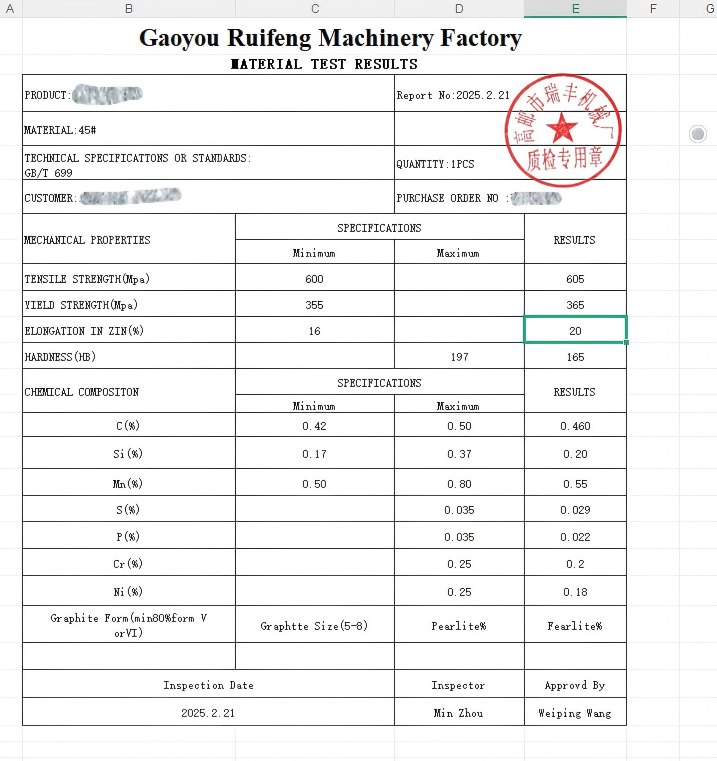

Gaoyou Ruifeng Machinery Factory holds ISO 9001:2015 quality management certification. Public document examples are shown with customer and project information removed. Inspection items and report level are defined according to customer drawings and order requirements.

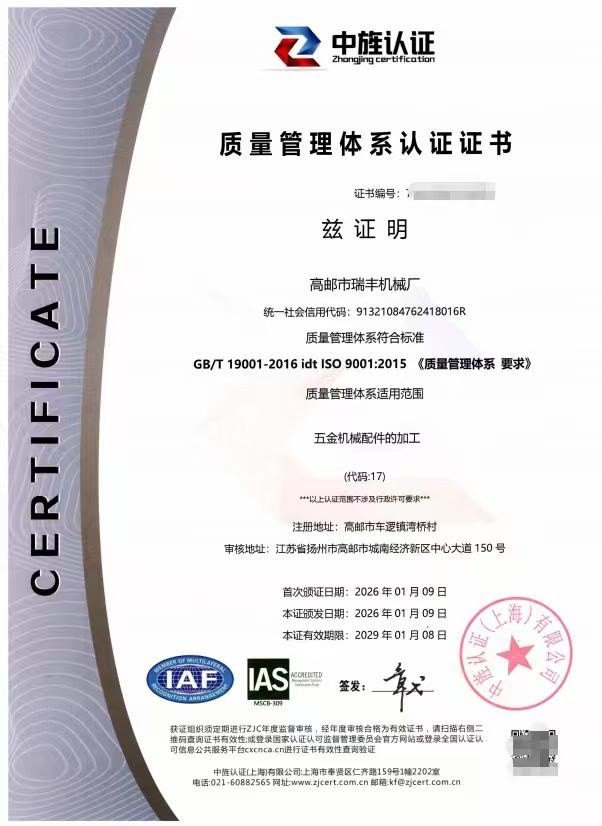

ISO 9001 certificate evidence
Request for quotation
Send Drawings or Sample Information
Include the component type, material, quantity, surface or overlay requirements, inspection needs and target timing when available.
01
Send Drawing
Upload drawings or sample photos with the known requirements.
02
Technical Review
We review material, tolerances, processes and missing information.
03
Quotation
Price and expected lead time are confirmed for the reviewed scope.
04
Production
Approved components proceed through the agreed machining, hardfacing and surface-treatment route.
05

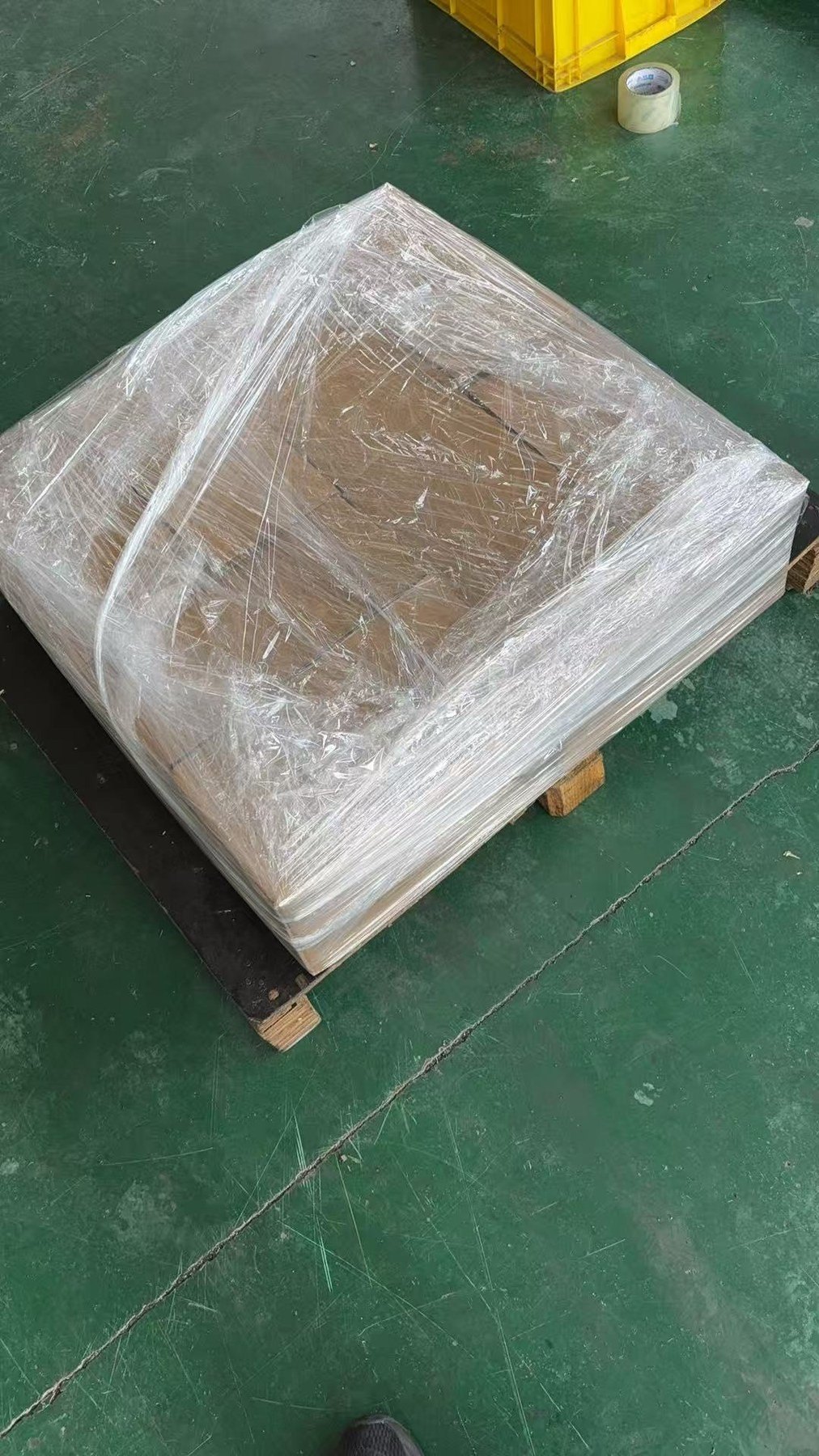

Inspection & Packing
Required records and packing photos are prepared when agreed.
