Finished valve closure components
Custom Hardfaced Valve Discs & Plugs

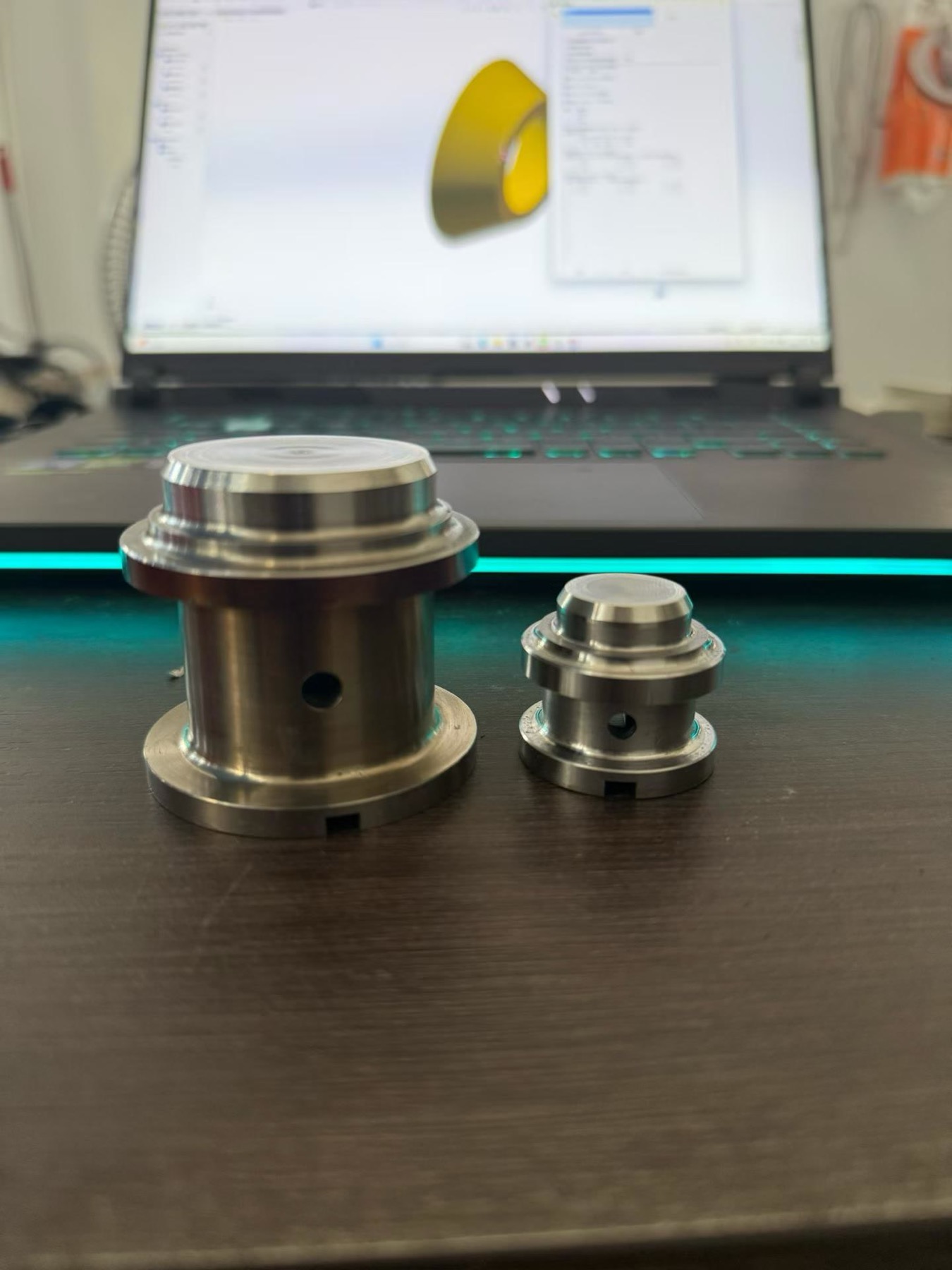

Finished custom hardfaced valve disc with a machined working surface
The Alloy 825 base material and the Stellite 6/ST6 and Stellite 12/ST12 grades shown apply only to their matching verified examples.
RF Machining supplies drawing- or sample-based finished components, not complete valves. Responsibility for complete-valve design, the pressure-retaining boundary, assembly, pressure testing, certification and valve performance remains with the valve manufacturer or design authority. Disc and plug terminology is applied according to the closure-member geometry identified by the customer drawing.
- Valve discs
- Valve plugs
- Finished components
Finished hardfaced valve discs and plugs
RF Machining reviews a disc or plug according to its drawing-defined closure-member geometry and marked working surface. Supply may start from a drawing, 3D model, sample or sample photos, but final production requirements must be confirmed. Applicable hardfacing routes are reviewed for each component and order. The route, filler/consumable grade, hardness, allowance, finished overlay thickness, dilution when applicable, finish machining and inspection are confirmed per drawing/RFQ/order.
Process evidence
Hardfacing Process Videos
Watch three verified examples: a finished hardfaced valve-disc batch, Stellite 6 hardfacing in progress on a drawing-defined valve disc, and a small batch of drawing-based globe-valve discs. Alloy grade and process requirements apply only to the matching drawing and order record.
Stellite 6 hardfacing in progress on a drawing-defined valve disc
Small batch of drawing-based globe-valve discs
Applications
- Drawing-defined valve discs
- Drawing-defined valve plugs
- Small plugs identified by the customer drawing
- Disc components supplied from customer samples after requirement review
- Plug components supplied from customer samples after requirement review
- Finished closure components with marked hardfaced working areas
Common names
- Hardfaced valve disc
- Hardfaced valve plug
- Finished valve disc
- Finished valve plug
- Instrument-valve plug
- Hardfaced closure member
Common materials
- Customer-specified base material
- RFQ-specified hardfacing or overlay alloy
- RFQ-specified trade-name alloy family only when identified by the drawing or order
Buyer concerns
- Base material identification
- Marked hardfacing or overlay area
- Filler or alloy grade
- Machining allowance
- Minimum finished overlay thickness
- Hardness requirement and test method
- Dilution requirement when applicable
- Final dimensions, surface finish and geometric tolerances
- NDT, PMI and inspection-report requirements when applicable
Managed manufacturing route
- Machining, hardfacing and related surface-treatment requirements are managed according to the agreed manufacturing route.
- Component geometry is reviewed for CNC turning, CNC milling and drawing-defined ID, OD, face or groove machining.
- Hardfacing or overlay area, alloy specification, machining allowance, finished overlay thickness, finish machining and inspection are confirmed per drawing/RFQ/order.
- Grinding and other related finishing requirements are included only when accepted in the agreed manufacturing route.
Key inspection items
- Base material verification when required
- Hardfaced or overlaid area
- Finished overlay thickness when specified
- Hardness using the specified test method
- Drawing-defined dimensions and geometric tolerances
- Surface finish
- NDT, PMI or other agreed inspection records when applicable
Documents available upon request
- Dimensional inspection report when required
- Material certificate when required
- Hardness record when required
- NDT or PMI record when agreed
- Hardfacing or process record when agreed
RFQ details to include
- Drawing, 3D model or sample photos
- Component type and geometry
- Base material grade
- Quantity
- Final dimensions, surface finish and geometric tolerances
- For welded hardfacing: filler/consumable grade, marked area, machining allowance, finished minimum overlay thickness and dilution when applicable
- Hardness requirement and test method
- NDT, PMI or inspection-report requirements when applicable
- Delivery requirement
Buyer FAQs
Can you supply finished hardfaced valve discs and plugs?
Yes. RF Machining supplies drawing- or sample-based finished components when the disc or plug geometry, base material, hardfaced area and final requirements are defined and accepted.
How do you distinguish a disc from a plug?
RF Machining follows the customer's drawing and closure-member geometry. The page does not use disc and plug as interchangeable names for every valve component.
Are Alloy 825 or the shown Stellite grades standard materials?
No. Alloy 825, Stellite 6/ST6 and Stellite 12/ST12 apply only to the matching verified gallery examples and order requirements. Other components follow their own RFQ-specified base material and overlay alloy.
Does Stellite describe every cobalt alloy?
No. Stellite is used only as an RFQ-specified trade-name family and is not a generic label for all cobalt alloys.
How is the disc or plug manufacturing route confirmed?
No universal hardfacing route is promised. Applicable hardfacing routes are reviewed for each component and order. The route, filler/consumable grade, hardness, allowance, finished overlay thickness, dilution when applicable, finish machining and inspection are confirmed per drawing/RFQ/order.
Does RF Machining take responsibility for the complete valve?
No. RF Machining supplies drawing- or sample-based finished components, not complete valves. Responsibility for complete-valve design, the pressure-retaining boundary, assembly, pressure testing, certification and valve performance remains with the valve manufacturer or design authority.
Related components
Request for quotation
Send drawings or sample information
Send your drawing or sample information together with material, quantity, surface-treatment and inspection requirements. Our team will review the request and reply as soon as possible.
RFQ details to include
- Drawing or sample information
- Material requirements
- Order quantity
- Surface-treatment requirements
- Inspection requirements
- Target delivery timing
